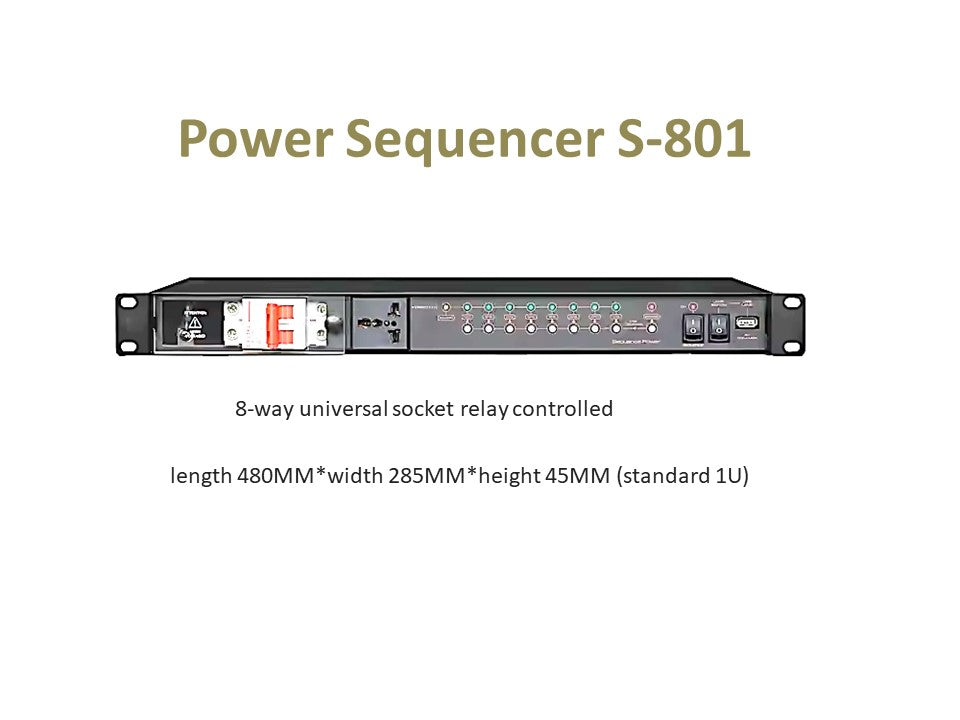

Model Number S-801
Customized NO
Dimension length 480MM*width 285MM*height 45MM
Power Supply Mode Other
Output Power 2000W/7000W/30A 277VAC
Connection Type Other
Shell Material Metal
The body material Metal
radio function NO
Panel color iron black
Number of channels 1 8-way universal socket relay controlled
Number of channels 2 1 way universal socket direct connection
Single power 2000W/7000W/30A 277VAC
Output power socket specifications flame-retardant ABS material, phosphor copper material
Power supply specifications built-in switching power supply(AC90-260V 50-60HZ)
Main cable specification 3*4 square cable, total length is 1.2 meters
Opening type square rocker switch
Body size length 480MM*width 285MM*height 45MM (standard 1U)
Features
①. Turn on in order and turn off in reverse order
②. PASS key can open all channels at the same time
③. With external control switch interface
④. Support panel independent control of each channel
⑤. Interval time/timing time of each switch: 1 second
⑥. Support stacking machine cascade
⑦. The maximum output of the USB interface is 5V/500MA, which can be connected to DJ lights
⑧. Six stability protection: over voltage protection, over heat protection, over discharge protection, short circuit protection, voltage stabilization protection, over current protection (63A)
⑨. Optional power purification function (EMI professional grid filter)
