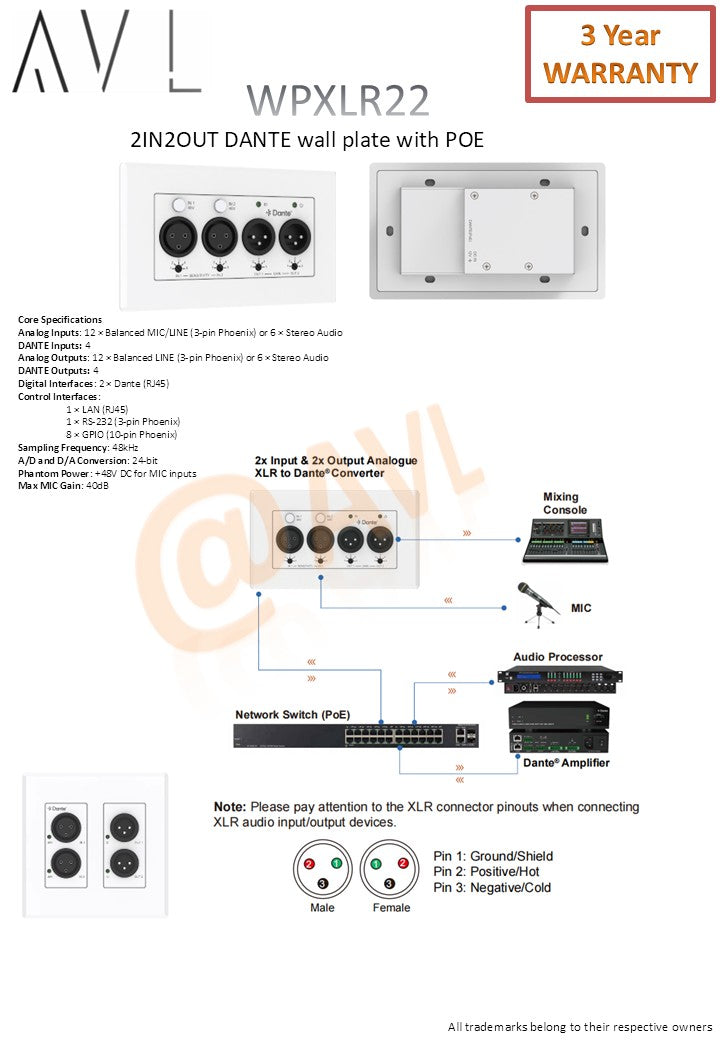

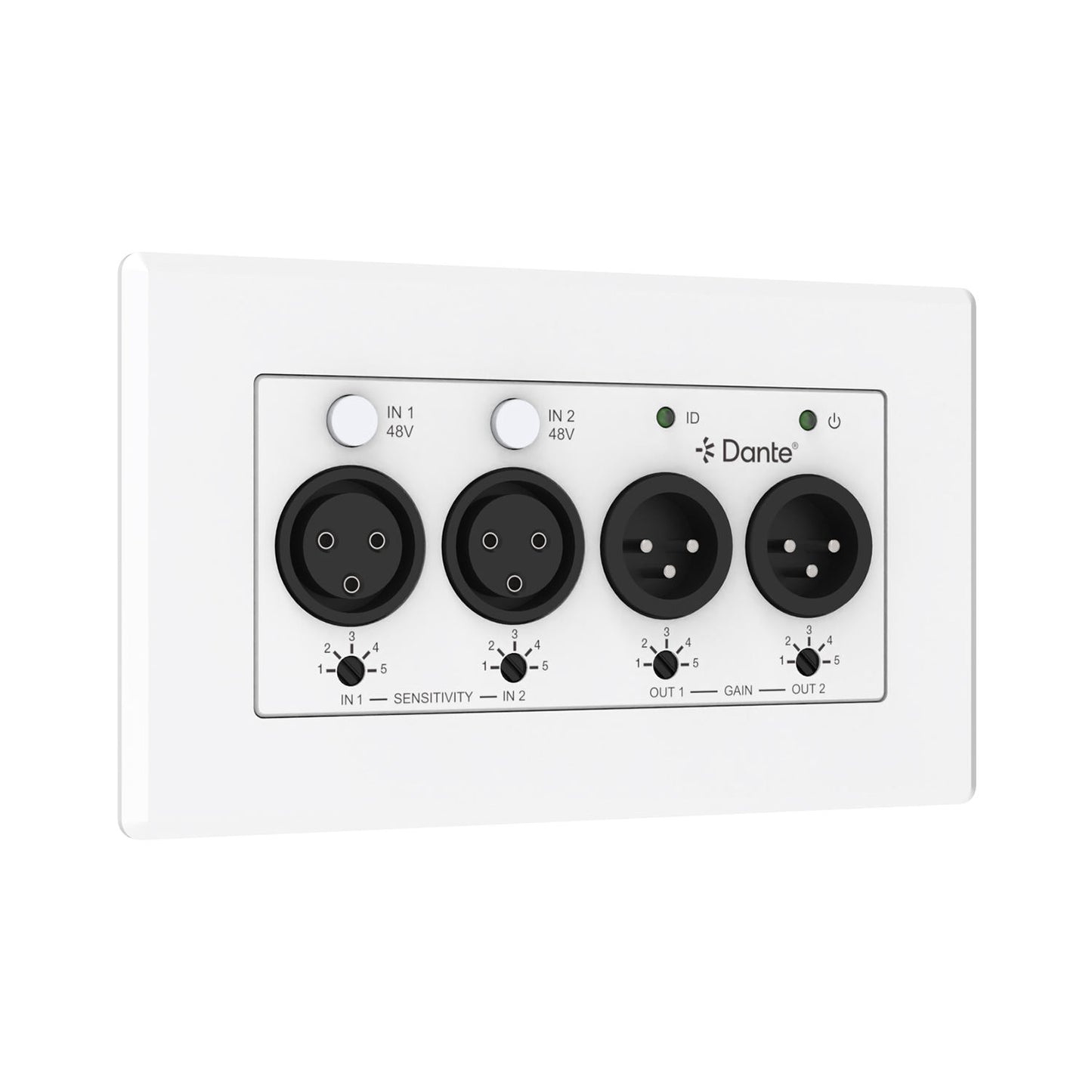

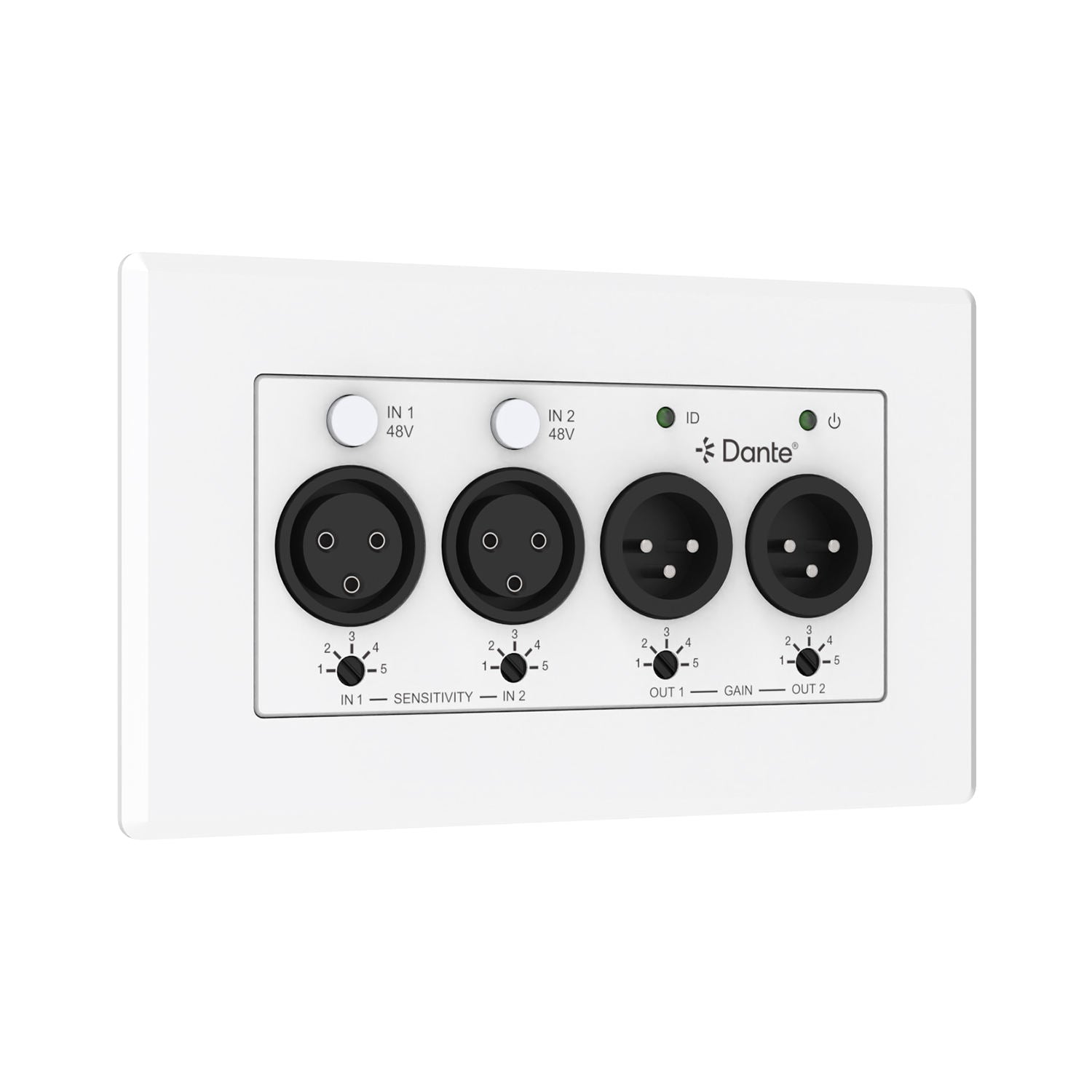

AVL WPXLR22 2x Input & 2x Output Analogue XLR to Dante® Wall Panel

AVL WPXLR22 2x Input & 2x Output Analogue XLR to Dante® Wall Panel is an audio
transmitter based on the Dante® Ultimo 2x2 solution. It is designed as a
standard 2-GANG EU/UK/US wall plate to convert and bridge traditional audio
source/sink devices to Dante® digital network.
Analogue audio input supports 5-level sensitivity adjustment. Analogue
audio output supports 5-level gain control.

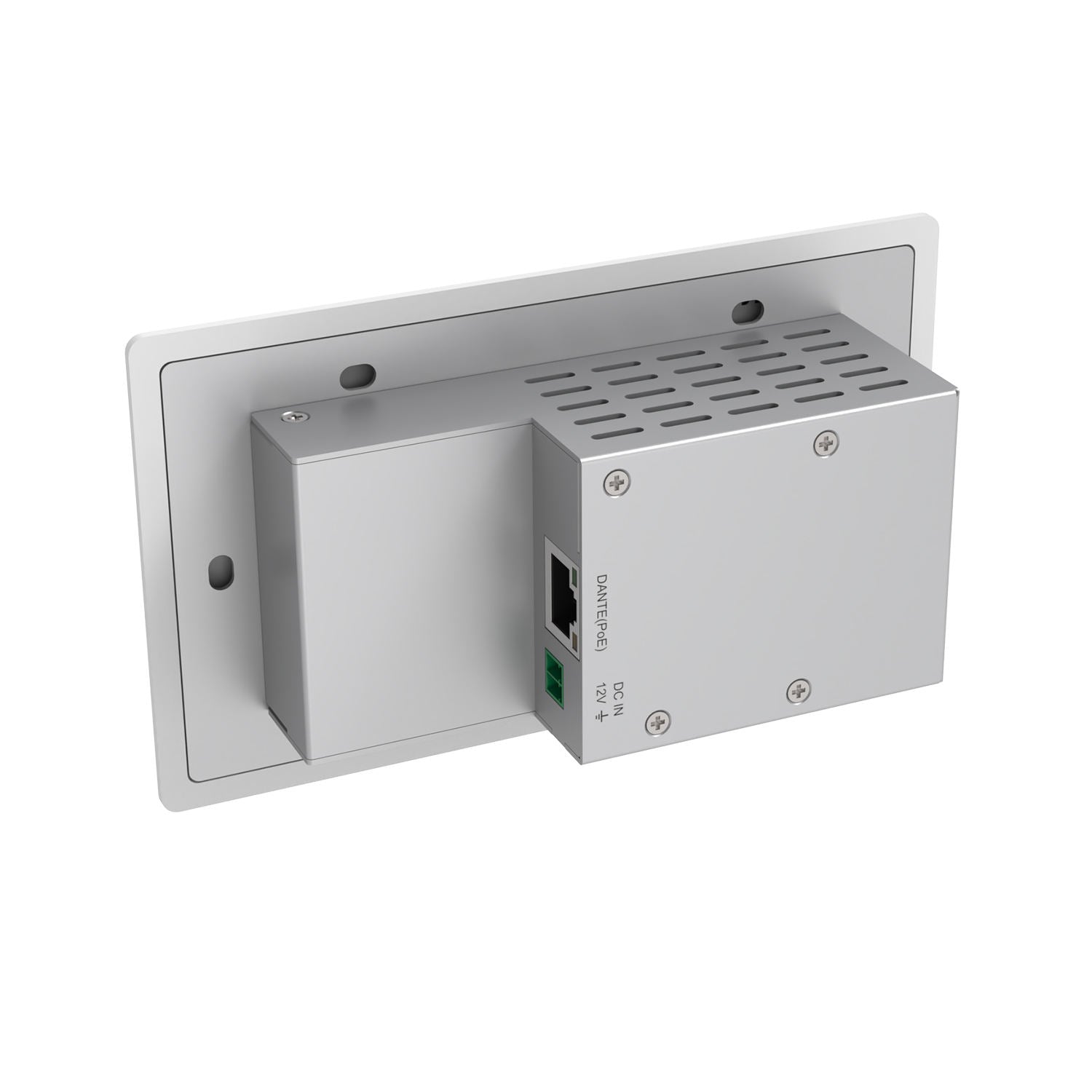

The converter supports local 12VDC power supply and PoE function.
☆ 2x Inputs + 2x Outputs (Dante® in and Dante® out)
☆ Balanced/unbalanced XLR analogue audio
☆ MIC Phantom 48V Power and on/off via hard button
☆ Input sensitivity and output gain control to adjust for different levels of
 MIC/XLR
☆ Dante® audio sampling rate supports 44.1/48/88.2/96KHz@24bit
☆ Configurable Dante® device latency (supports 1, 2 or 5ms configurable
 using Dante® Controller)
☆ Supports AES67 RTP audio transport
☆ PoE & local power options
☆ Standard 2-GANG EU/UK/US faceplate design
